Combine

Overview

The Combine Operation would combine the images in the pipeline into one image.

Configuration

Use "combine" as the type of the operation.

Keys in "config":

Key	Type	default value	Description
direction	string	"ttb"	There are 4 options: "ttb", "btt", "ltr", "rtl" "ttb" means "top to bottom" "btt" means "bottom to top" "ltr" means "left to right" "rtl" means "right to left"
horizontal_align	string	"center"	There are 3 options: "left", "center", "right" This applies when "direction" is "ttb" or "btt".
vertical_align	string	"center"	There are 3 options: "top", "center", "bottom" This applies when "direction" is "ltr" or "rtl".

Examples

Take this xopp file as an example.

Direction

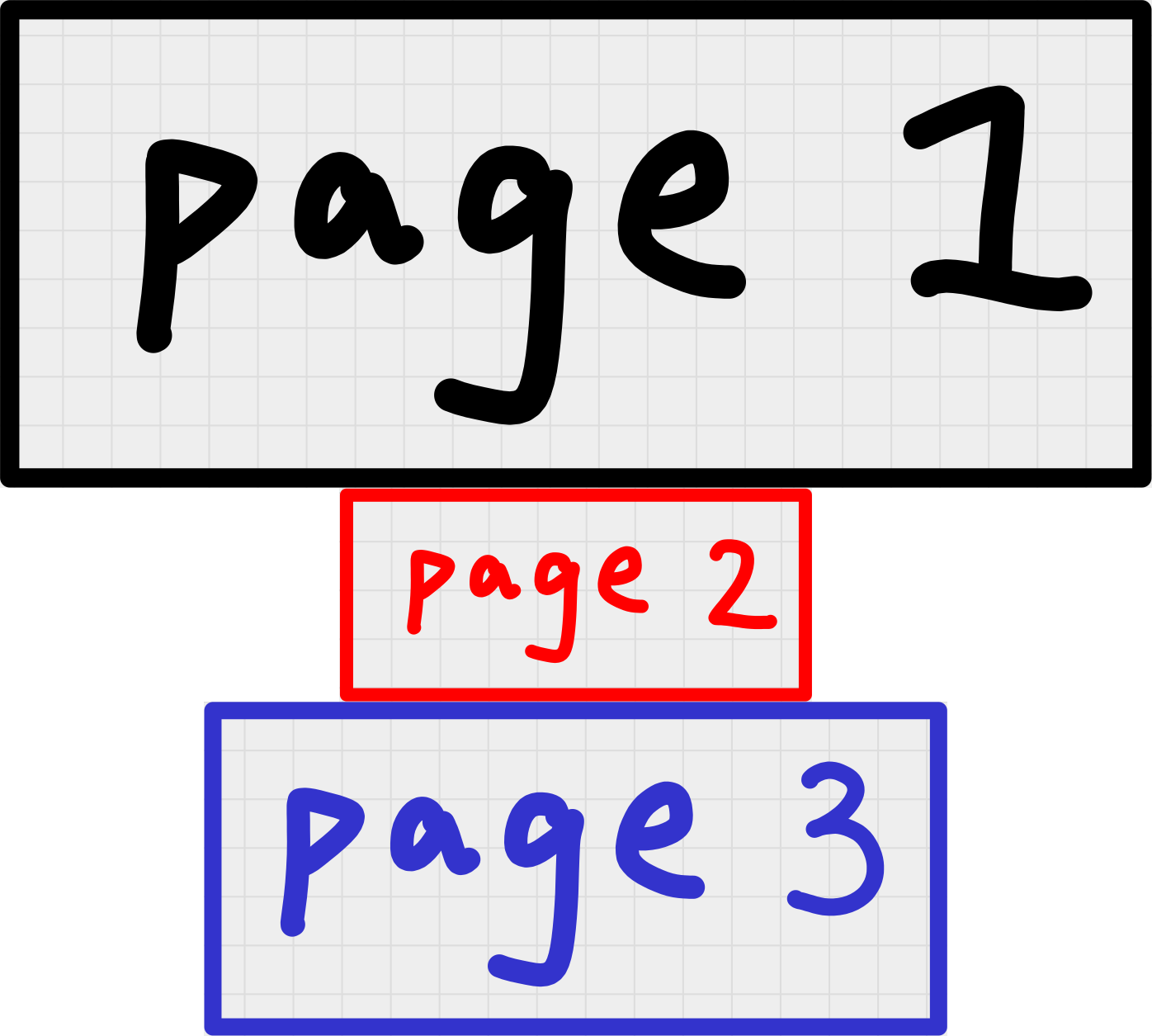

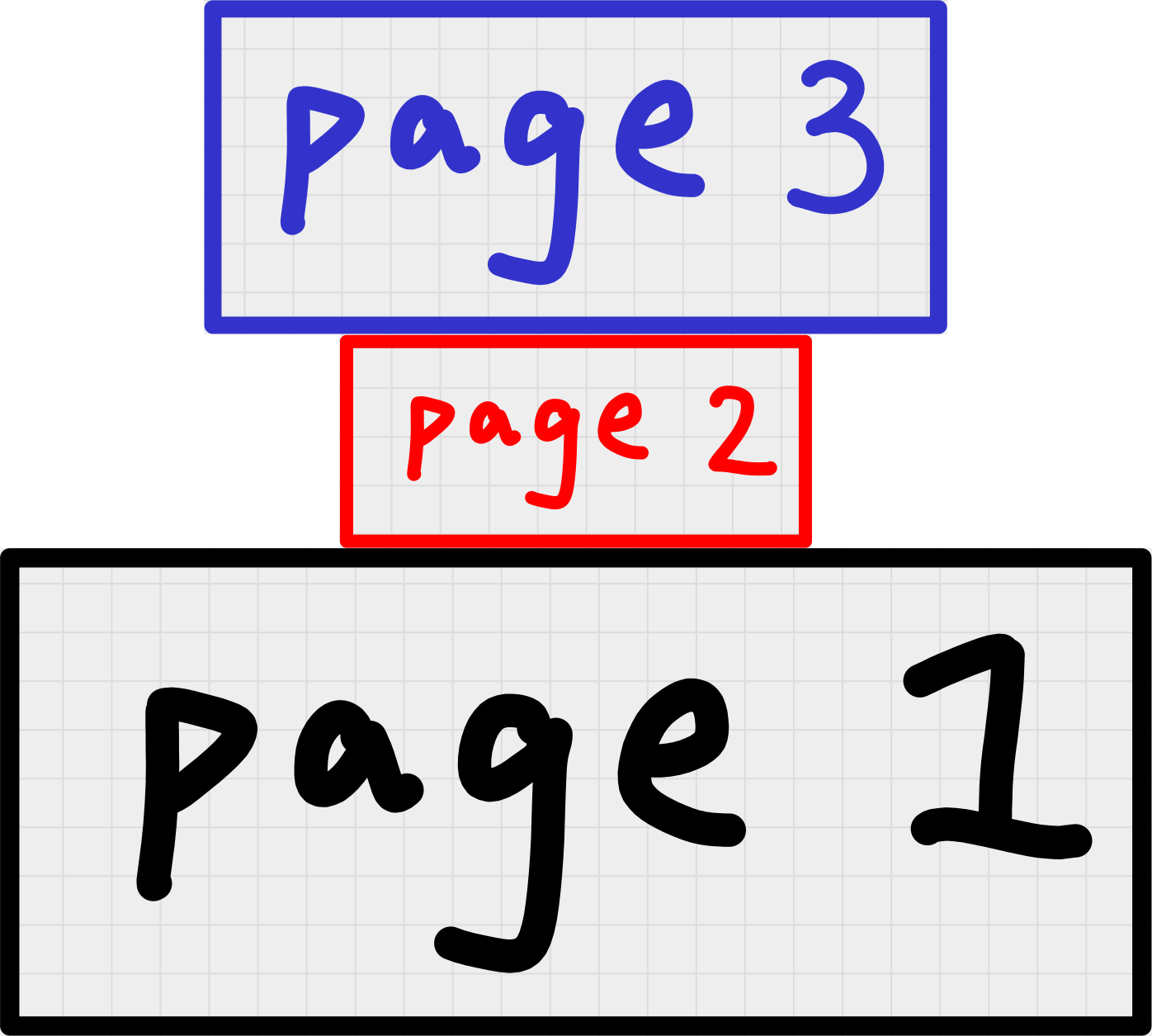

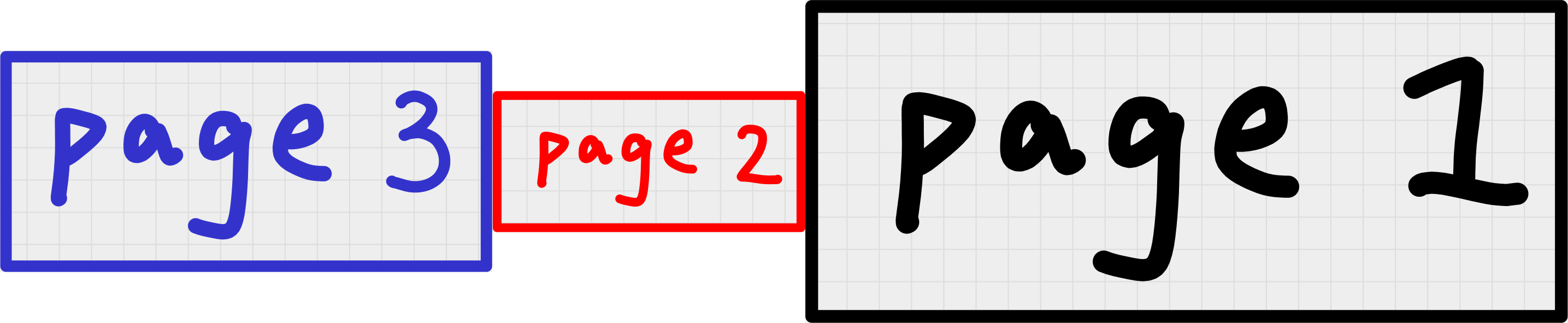

ttb (top to bottom) btt (bottom to top) ltr (left to right) rtl (right to left)

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ttb"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "btt"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ltr"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "rtl"
            }
        },
        {
            "type": "save"
        }
    ]
}

Horizontal alignment

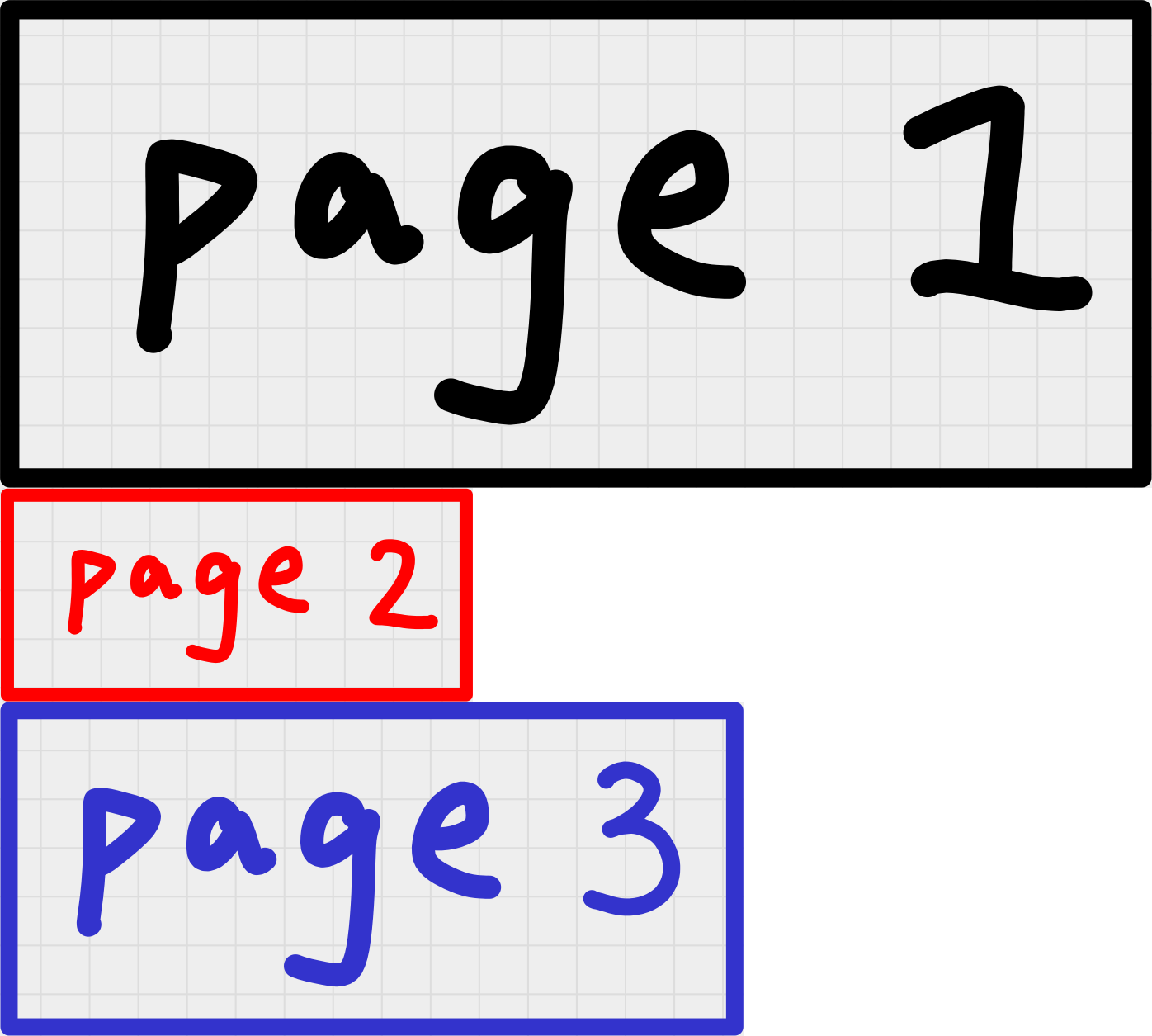

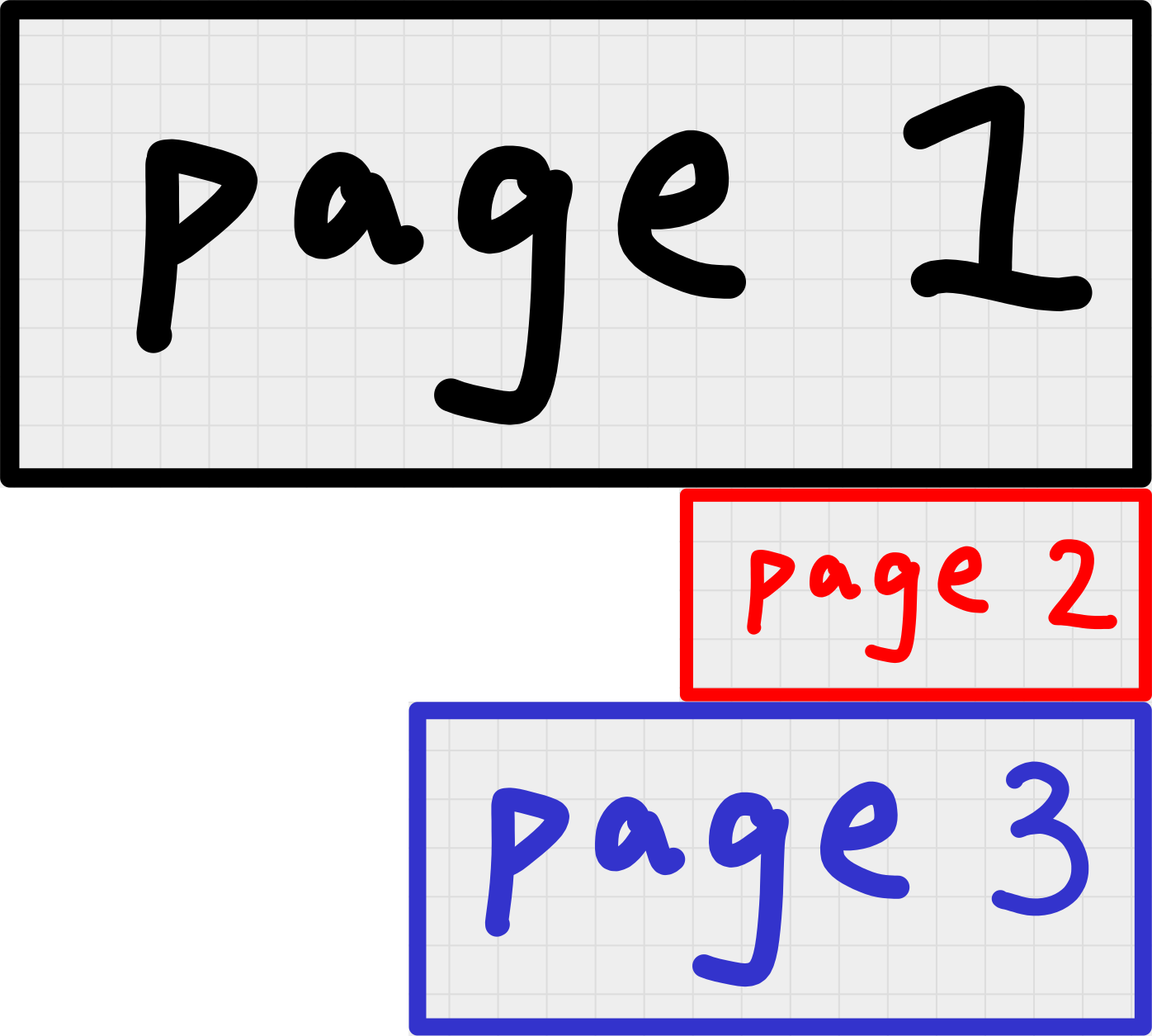

left center right

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ttb",
                "horizontal_align": "left"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ttb",
                "horizontal_align": "center"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ttb",
                "horizontal_align": "right"
            }
        },
        {
            "type": "save"
        }
    ]
}

Vertical alignment

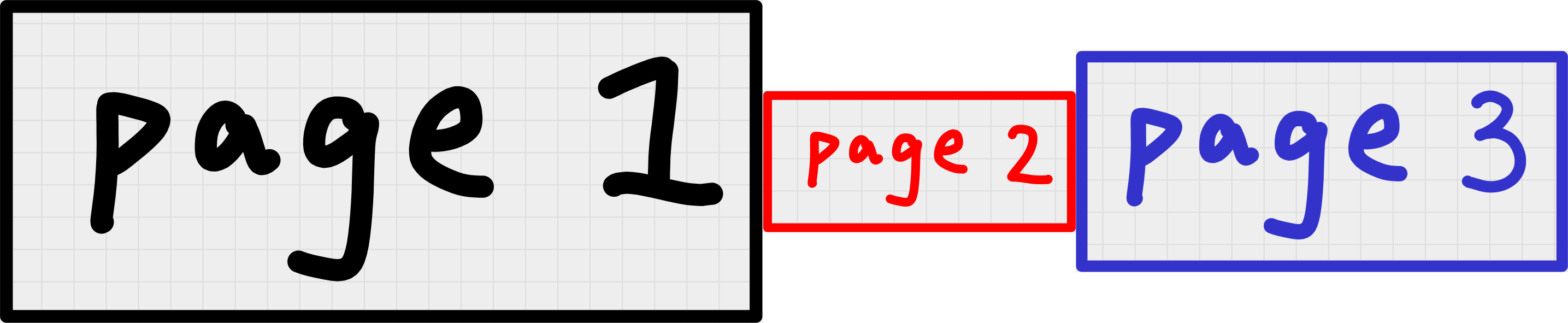

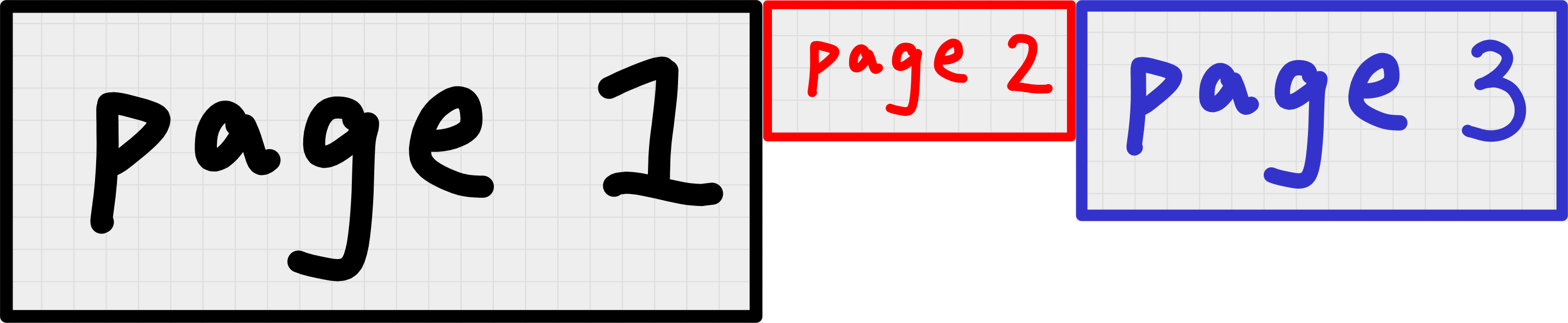

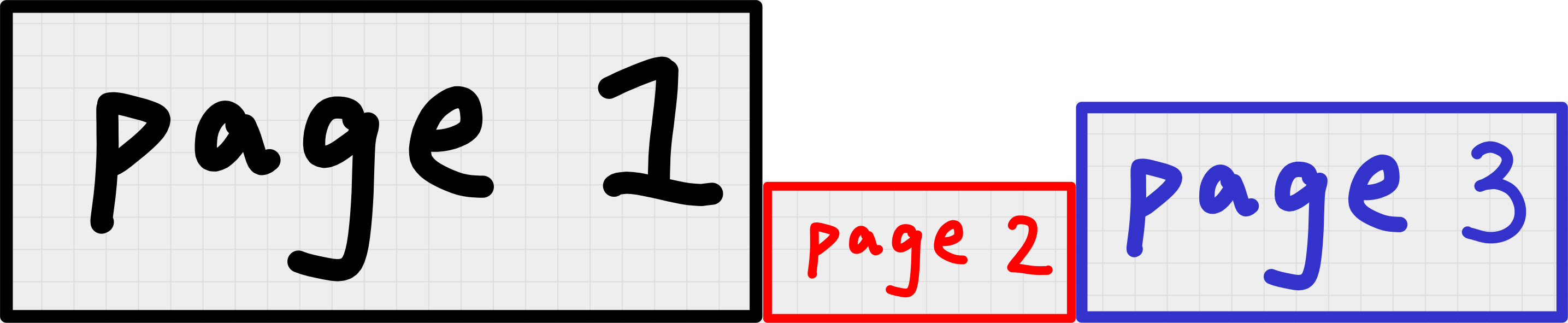

top center bottom

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ltr",
                "vertical_align": "top"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ltr",
                "vertical_align": "center"
            }
        },
        {
            "type": "save"
        }
    ]
}

config.json

{
    "pipeline": [
        {
            "type": "load",
            "config": {
                "paper_background_preserved": true,
                "trim": true
            }
        },
        {
            "type": "combine",
            "config": {
                "direction": "ltr",
                "vertical_align": "bottom"
            }
        },
        {
            "type": "save"
        }
    ]
}
